uPVC Folding Doors in Kolkata: Types, Mechanism, Features and Applications
uPVC folding doors are multi-panel door systems designed to create wide openings by allowing individual panels to fold and stack together. Unlike conventional hinged doors or sliding doors, folding doors can open a larger portion of the doorway, making them suitable for spaces where indoor and outdoor areas need to connect more freely.
Made using unplasticised polyvinyl chloride (uPVC) profiles, these doors combine a folding-panel arrangement with hinges, running hardware, tracks and locking components. They can be designed with glazed panels to improve natural lighting while maintaining a defined separation between spaces when closed.
For residential and commercial properties in Kolkata, uPVC folding doors can be considered for balconies, patios, terraces, kitchens and large room openings, depending on the available space and the selected system.
Planning wide opening folding doors for your Kolkata property?
Connect with Promi Plast for custom panel configurations, technical consultation, and precise site measurements.
What Are uPVC Folding Doors?
A uPVC folding door is a door assembly made up of multiple connected panels. Each panel is attached to the adjacent panel through hinges, allowing the sections to fold in sequence when the door is opened.
The panels move along a guide or track arrangement and gather towards one or both sides of the opening. When fully opened, they form a compact stack rather than occupying the entire doorway.
When closed, the panels align to form a continuous door surface. Seals, locking points and the frame help reduce air and water infiltration, depending on the design, materials and installation quality.
Key Distinctions Between Door Systems:
- • Folding doors:Multiple panels fold and stack together to open up the maximum usable aperture.
- • Sliding doors:Panels move horizontally past one another along parallel tracks, retaining overlapping panels within the frame.
- • Casement doors:One or more panels rotate on side-mounted hinges, requiring radial swing clearance.
How Does a uPVC Folding Door Mechanism Work?
The operation of a folding door depends on the movement and coordination of its connected panels. Rather than opening independently like conventional doors, the panels move together in a sequence.
A typical folding door system includes the following essential engineered components:
1uPVC Frame
The outer frame is fixed to the building opening and supports the door assembly. It provides the structural boundary for the panels and accommodates the hardware and sealing arrangements. The frame must be correctly sized, aligned and secured to support the weight and movement of the folding panels.
2Folding Door Panels
The panels form the moving sections of the door. Each panel consists of a reinforced uPVC sash profile and may include glass or another compatible infill. The number and width of panels depend on the overall opening size, system design and available stacking space.
3Hinges and Connecting Hardware
Specialised hinges connect neighbouring panels and allow them to fold in a controlled sequence. Their quality, positioning and compatibility with the panel weight influence how smoothly the door operates over long cycles.
4Rollers and Track System
Depending on the selected folding system, heavy-duty rollers or carrier assemblies guide the panels along a dedicated track. Track alignment, roller quality and load compatibility are critical for smooth operation.
5Pivot and Guide Components
Pivot and guide components control the movement of the leading and connected panels. They help the door follow its intended folding path without unnecessary lateral movement or misalignment.
6Locking Mechanism and Handles
The multi-point locking system secures the panels when the door is closed. Locking points engage at multiple positions along the frame for maximum burglar and weather resistance.
7Gaskets and Sealing Components
EPDM sealing components are fitted around relevant contact points between the frame and panels. They help limit the entry of dust, rainwater and outside air when the door is closed. The actual sealing performance depends on panel alignment, drainage and installation accuracy.
Types of uPVC Folding Doors
Folding doors can be planned in different configurations depending on the size of the opening, the direction of movement and the intended use.

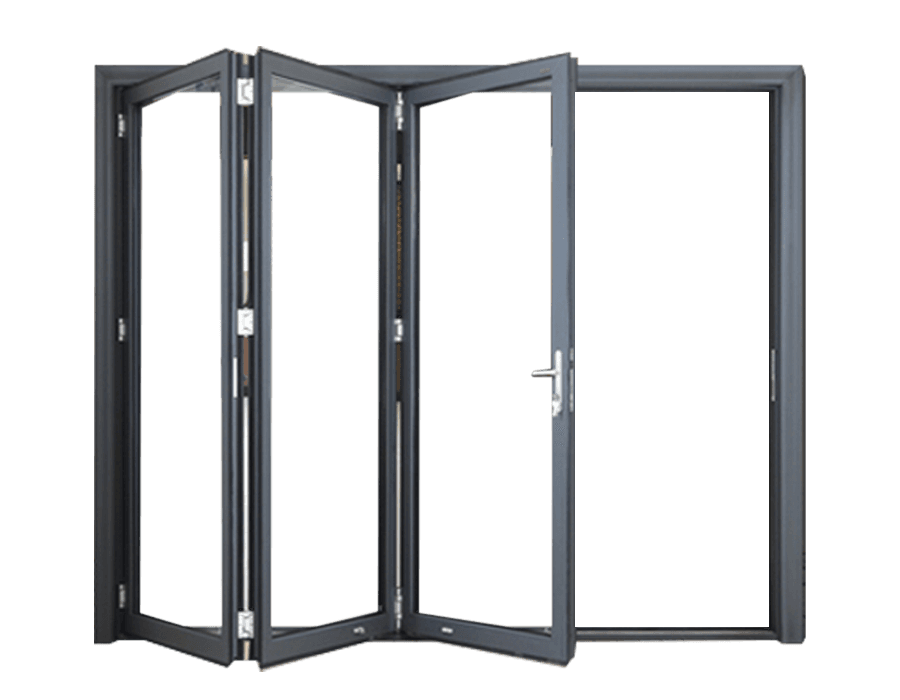

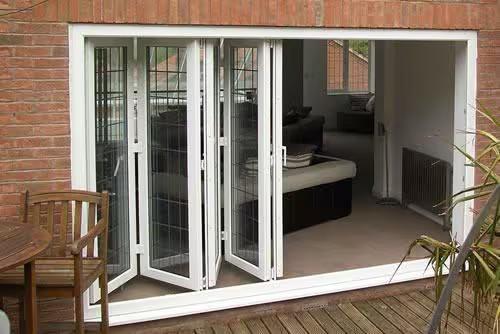

1. uPVC Bi-Fold Doors
Bi-fold doors use connected panels that fold together when opened. The panels stack towards one side or are arranged according to the selected system design. They can be used for residential openings where a wider passage is preferred over a conventional hinged door.
Common applications:
- Balcony and terrace entrances
- Living room openings
- Patio access
- Internal room partitions
2. uPVC Multi-Fold Doors
Multi-fold doors contain several connected panels that fold into a compact stack. They are generally considered for wider architectural openings where a larger number of panels may be required. The number of panels, stacking direction and opening arrangement need to be planned according to the building layout.
Important planning considerations:
- Total opening width and height
- Individual panel dimensions and aspect ratio
- Available stacking clearance on left, right, or both sides
- Hardware load-bearing capacity and roller durability
- Threshold and floor-level integration requirements
3. uPVC Folding Glass Doors
Folding glass doors use glazed panels within the folding door frame. The expansive glass area allows abundant natural light to enter while providing visibility between connected spaces. They are often considered for balconies, patios, garden-facing rooms and other openings where maintaining an outdoor view is important.
Possible glass configurations include clear, frosted, laminated, toughened or insulated glass units (DGU), subject to system compatibility. Glass selection should consider safety regulations, panel dimensions, privacy requirements, solar exposure and the total weight supported by running hardware.
4. uPVC Folding Kitchen Doors
Folding doors can be used between kitchens and adjoining dining or living areas. When opened, the panels create an expansive passage; when closed, they provide clean acoustic and odour separation. This arrangement is especially useful where a kitchen needs to connect to the living area during entertaining and remain separate during active cooking.
The layout design accounts for kitchen ventilation, grease and moisture resistance, easy wipe-down surfaces, privacy and stacking space that does not impede cabinetry.
5. uPVC Folding Balcony Doors
Folding balcony doors connect indoor living spaces with balconies or terraces. Their multi-panel design allows a wider opening than many conventional door arrangements, while glass panels preserve scenic views and natural daylight even when closed.
Critical factors for balcony installations:
- Resistance to wind-driven monsoon rain and gust pressures
- Dedicated drainage channels and weather-rated low threshold detailing
- Safety glass (toughened or laminated) sized for safety
- Robust multi-point locking mechanisms for home security
- Professional perimeter sealing and elastomeric weatherstripping
Key Features of uPVC Folding Doors
Wide Opening Arrangement
The connected panels fold cleanly towards the perimeter, allowing up to 90% of the doorway to be usable, significantly improving transit flow between spaces.
Space Planning Flexibility
Unlike large single-swing doors that demand extensive floor arc clearance, folding panels concertina neatly, preserving floor space inside and outside.
Natural Light and Outdoor Views
Large glazed apertures flood rooms with daylight and frame panoramic views of gardens, city skylines, or private terraces.
Material Resistance
High-grade uPVC will not rust, warp, peel or rot like timber or low-grade metal when exposed to Kolkata’s moisture and saline humidity.
Insulation When Closed
Multi-chambered profiles, perimeter EPDM gaskets, and double glazing deliver excellent thermal and acoustic insulation against city noise and outdoor heat.
Design & Architectural Flexibility
Configurable panel arrangements, opening directions (left, right, or split), glass options, and durable profile laminates seamlessly complement any decor.
Advantages and Practical Limitations
Understanding both the benefits and limitations helps determine whether a folding door system is suitable for a particular opening:
| Advantages | Practical Considerations |
|---|---|
| Creates a wider opening | Requires dedicated space for folded panels to stack neatly |
| Connects indoor and outdoor areas seamlessly | Hardware needs to support total panel and glass weight reliably |
| Can accommodate glazed panels for natural light | Glass selection affects overall weight and roller specification |
| Reduces the need for a large swing area | Track and threshold details require careful planning and drainage |
| Suitable for wide architectural openings | More moving components than a simple single-leaf hinged door |
| Available in versatile panel arrangements | Requires accurate initial alignment and periodic hardware checks |
A folding door should not be selected only because it offers a large opening. The building layout, frequency of use, panel dimensions and installation conditions are equally important.
Where Are uPVC Folding Doors Used?
1. Residential Properties
Folding doors can be used in houses and villas where a wider opening is needed between two connected spaces. Common locations include living rooms opening onto balconies, dining areas connected to patios, terrace entrances, garden-facing rooms, and selected internal acoustic partitions.
2. Apartments
In urban Kolkata apartments, folding doors help connect living spaces with balconies. Before selecting the system, the available stacking area and balcony access requirements should be assessed to ensure uninterrupted passage.
3. Commercial Spaces
Folding doors are widely considered for commercial applications, including cafés and restaurants, reception and lounge areas, office meeting partitions, showrooms, and hospitality venues. The system should be selected according to expected usage frequency, opening size, and operational requirements.
Are uPVC Folding Doors Suitable for Kolkata's Climate?
Kolkata experiences high humidity, seasonal rainfall, warm summers and periods of strong sunlight. These environmental conditions make material selection and installation detailing important for external doors.
uPVC profiles are resistant to moisture-related deterioration and do not rust or rot. They can therefore be considered for residential and commercial openings exposed to humid conditions. However, the performance of an external folding door depends on more than the frame material alone.
Key Factors to Evaluate for Kolkata Weather:
- • Rainwater management:Track and threshold arrangements should provide appropriate drainage channels and reduce the risk of water accumulation during intense monsoon downpours.
- • Sealing:Gaskets and frame-to-wall sealing must be correctly installed to limit rainwater and air infiltration.
- • Sun exposure:UV-stabilised profile formulations and solar control glazing ensure long-term stability under prolonged sunlight and heat.
- • Hardware durability:Hinges, rollers, pivots and locking components must be corrosion-resistant and rated for the expected operating frequency and panel weight.
- • Installation accuracy:Precise plumb, level, and square alignment prevents uneven panel movement, air leaks, or hardware strain.
uPVC Folding Doors vs Sliding Doors vs Casement Doors
Different door systems solve different space and access requirements. The most suitable option depends on how much of the opening needs to remain accessible:
| Feature | Folding Doors | Sliding Doors | Casement Doors |
|---|---|---|---|
| Opening mechanism | Connected panels fold and stack | Panels slide horizontally along tracks | Panels rotate on side hinges |
| Opening area | Can open a large portion of the doorway (up to ~90%) | Some opening remains occupied by overlapping panels | Depends on number and width of hinged panels |
| Space requirement | Requires panel stacking space at the sides | Requires track and panel movement clearance | Requires swing clearance in the arc of opening |
| Suitable applications | Wide openings, patios, terraces and large balconies | Balconies, compact spaces and regular access openings | Main entrances, utility doors and smaller openings |
| Hardware | Hinges, carriers, guides and locking components | Rollers, tracks and interlocks | Hinges, friction stays and locking hardware |
Choose Folding Doors:
When creating a wider opening is a priority and sufficient stacking space is available.
Choose Sliding Doors:
When a simple horizontal opening mechanism and zero swing clearance are required.
Choose Casement Doors:
When a conventional hinged opening with tight perimeter sealing is suitable.
What Should You Check Before Choosing a uPVC Folding Door?
Selecting a folding door involves more than deciding its appearance. The following factors should be thoroughly reviewed before finalising the design:
- • Opening dimensions:Accurately measure the structural width and height of the finished building aperture.
- • Panel configuration:Decide how many individual panels are required based on width and visual proportion.
- • Stacking direction:Verify whether panels fold to the left, right, or split to both sides without obstructing furniture or circulation.
- • Hardware capacity:Confirm that hinges, rollers and carriers are certified for the panel dimensions and glass weight.
- • Glass specification:Select glazing (single, laminated, toughened or DGU) based on safety, privacy, daylight, and acoustic needs.
- • Threshold design:Consider finished floor levels, accessibility (flush/low threshold) and exterior rainwater drainage.
- • Locking arrangement:Ensure multi-point locking hardware secures all folding leaves firmly against wind and intruders.
- • Installation quality:Ensure the outer frame is anchored plumb and square with durable silicone perimeter sealing.
- • Maintenance access:Confirm tracks, drain slots, and running gear can be easily inspected, cleaned, and lubricated.
About Promiplast Windows
Promiplast Windows began operations in 2016 with a focus on manufacturing uPVC windows and doors using modern manufacturing technology. The company serves residential and commercial requirements across Kolkata and West Bengal.
Its stated product focus includes UV-resistant uPVC profiles, energy-efficient door and window solutions, in-house precision manufacturing and professional installation support. Promiplast also states that its profiles offer UV resistance and mechanical properties exceeding the parameters specified in EN 12608-1:2016.
The company provides a 20-year warranty across its product range. For a folding door project, the panel configuration, glass specification, track arrangement, hardware and installation details should be confirmed with Promiplast before finalising the system.
Conclusion
uPVC folding doors are designed for openings where flexibility, wider access and the seamless connection between indoor and outdoor spaces are important. Their performance depends on the precision coordination of the frame, panels, hinges, rollers, tracks, glazing, seals and locking hardware.
Before choosing a folding door for a home or commercial property in Kolkata, consider the opening dimensions, panel arrangement, stacking space, weather exposure and installation requirements. These factors help ensure a durable, weatherproof, and aesthetically pleasing entrance for years to come.
